Top 3 Defence Vehicles Armoured By JCBL For Robust Use In The Military

Did you know that the Indian armed forces has around 4000+ Main Battle Tanks, 4300+ Artillery pieces, 100+ Light Helicopter, and 2000+ Armoured Personnel Carriers?



Defence vehicles are not just limited to trucks and tanks. They cover a plethora of different vehicle types. While major of them serve the purpose of warfare, most of them are utilised as auxiliary vehicles to complement the bigger picture. These are utilised to carry armoury, troops, secret messages, ration stocks or whatever is of paramount importance.



Armoured vehicle manufacturers play a crucial role in the defence. They supply the major modes of equipment in terms of transportation and demand.



Accordingly, JCBL has a fair share to provide as such. The top 3 armoured vehicles by JCBL for the defence are-

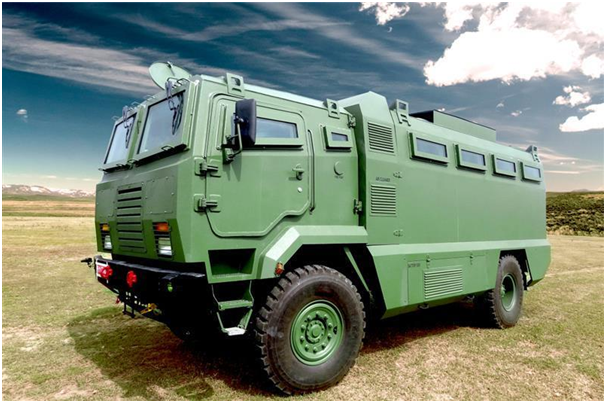

1. Armoured Stallion Cab: The backbone of logistics in the Indian Army



Stallion cabs have been in the use for quite a long time. Utilised in insurgent activities, these cabs have marked their presence in the defence for good. Truly a mobile fortress on wheels, the body and features of this vehicle are stupendous.



It is a vital cargo transport truck in the Indian defence logistics system. It is mainly configured to provide mobility in hard and harsh external conditions.



Stallion comes in three standard versions- Super Stallion 6*6 HMV, Super Stallion 8*8 HMV, Super Stallion Field Artillery Tractor.



Intended for carrying howitzers and guns, it is utilised in a wide variety of terrains.



From high-altitude bases to costal operations, Stallions prove their worth. Being a medium-duty defence vehicle, Stallion is applied for tactical and logistical operations alike. Turning radius usually varies around 27m. This helps in easy maneuverability as required.





The Stallion is available in right, or left hand drive, automatic or manual transmission.



At JCBL armoured cabins include these topmost features-



  • Level 3 Protection which allows standard protection from handguns of super power



  • CEN BR level 6 making it impossible to get through the vehicle



  • Upgraded brake pads for superior performance



  • Bullet catcher and large overlaps at door



  • Run flat fittings of Europlast /Hutchinson supported



Must Read: The Insider's Guide to ISUZU Armoured Tactical Vehicle



Engine

HA6ET13UN-BSIII 135kW@2400rpm, 670Nm@1300-1600 rpm160 Ltrs

Transmission

6 SPEED SYNCHROMESH (6F + 1R)

Wheel/Tiers

355/90 R 20

Brakes

Graduates Hand Control Valve Operated, Spring Brake

Axle Type

Front and Rear : Fully Floating , Single Speed Hypoid Drive, Capacity 7500 Kg

Suspension

Front and Rear : Semi-Electric Multi Leaf, Double Action Telescopic

Wheelbase

4,200mm

Dimensions

L - 7,885mm,  W - 2,545mm,   H - 3,360mm

Armouring

CEN Level BR6



It is mainly built for easy maintenance in regions where infrastructure is under-developed.



Important fact: Armoured vehicles are used to carry civilians during emergencies like war.

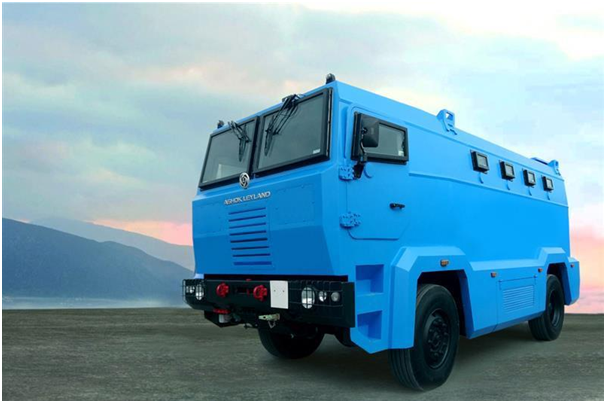

2. Armoured Medium Bulletproof Vehicle: The indispensable vehicle for transportation and combat



The Indian defence uses a lot of medium bulletproof vehicles. They are mostly used for better maeurverability, maintenance and operability. Accordingly, bulletproof glass manufacturers in India have a large market for the defence sector because of the demand for such vehicles.





This vehicle is among the top 30 kinds of military vehicles in deployment.



Being an all weather off-road mobility vehicle, it makes it easy for-



  • High maneuverability and mobility



  • Brilliant cross-country performance



  • A satisfactory long operational range



  • Armament adaptation because of large payload



  • All round armor protection



Specifications of the vehicles are-



Engine

HA6ET13UN-BSIII 135kW@2400rpm, 670Nm@1300-1600 rpm160 Ltrs meaning better Power &

Control

Transmission

ZF S6 36 OD, 6F + 1R

Wheel/Tiers

13 R 22.5 (Run Flat System)/ 315/ 80 R 22.5 (Optional)

Brakes

Full Air - Dual Line with ABS, Spring Brake, Graduates Hand Control Valve Operated

Axle Type

Fully Floating , Driven Axle, Steerable , RS 145

Suspension

Rear and Front : Double Action Telescopic, Semi-Electric Multi Leaf

Ground Clearance

285mm

Dimensions

L - 6,882mm,  W - 2,500mm,   H - 3,000mm

Armouring

CEN Level BR6

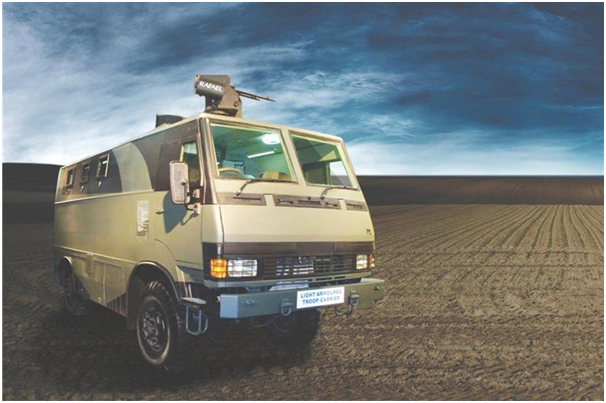

3. Armoured LATC (Light Armour Troop Carrier): The light troop carrier



India produces a lot of personnal carriers. Light armour troop carrier is one such production for the defence.



Car armouring is just the beginning. The real picture gets bigger from here onwards. With upgraded mechanical components, this vehicle is able to handle additional weight. Also, it supports the fully loaded weight of armouring which includes- brakes, suspensions, ballistic hinges and run-flat systems.





It is mainly utilised in –



  • Carrying troop in the most difficult of situations and places



  • In deploying of successful transportation of armoury



Engine

HA6ET13UN-BSIII 135kW@2400rpm, 670Nm@1300-1600 rpm160 Ltrs

Transmission

6 SPEED SYNCHROMESH (6F + 1R)

Wheel/Tiers

355/90 R 20

Brakes

Graduates Hand Control Valve Operated, Spring Brake

Axle Type

Front and Rear : Fully Floating , Single Speed Hypoid Drive, Capacity 7500 Kg

Suspension

Front and Rear : Semi-Electric Multi Leaf, Double Action Telescopic

Wheelbase

4,200mm

Dimensions

L - 7,885mm,  W - 2,545mm,   H - 3,360mm

Armouring

CEN Level BR6



These are among the top armoured vehicles that are fabricated (armoured) by JCBL. It is an interesting fact that despite having a long list of armoured vehicles India is a peaceful country and does not go to war easily.



The specific features and characteristics make these vehicles occupy an important place in the defence mechanism of our country.
